Linear Amp UK 70-1K 1000W 432MHz Solid State Linear Amplifier
- 1000W Output 430-440MHz
- Solid State linear amplifier for all modes
- Integral Power Supply 100-260V 50/60Hz input
- Cooling for EME / Datamode / Contest use
- Sequenced preamp power and control
- 14.5Kg
Linear Amp UK · 432 MHz Solid State Linear Amplifier
Linear Amp UK 70-1K 432 MHz Solid State Linear Amplifier
1000 W Output · High Duty Cycle · Made in the UK
A 1000 W solid state linear amplifier for the 430–440 MHz amateur band, from the same stable as the 2-1.2K. Suitable for all modes — SSB, CW, RTTY, FT8, JT65, MSK and more. Designed from the outset for high duty cycle operation including EME, meteor scatter, and contesting.
ART1K6FH LDMOS
Built-in Preamp Sequencer & Bias-T
100–260 V 50/60Hz
>60% Efficiency
14.5 kg
Key Performance Figures
Features
High Duty Cycle Design
Built around a 7.5 kg aluminium heatsink cooled by three temperature-controlled fans with stepless PIC-based speed control. Tested at 600 W continuous for 30 minutes — ideal for EME, meteor scatter, FSK, and contesting on 432 MHz.
Advanced Preamp Integration
Built-in sequencer and Bias-T feed for masthead preamplifiers. Supply voltage 12 V with manually adjustable sequencing delay. Correctly sequences an external preamplifier automatically on every QSO.
Quiet, Intelligent Cooling
Fans run only when needed, with stepless temperature-proportional speed control via an on-board PIC controller. Changeover relays are equally quiet — unobtrusive in any shack environment.
Protection & Monitoring

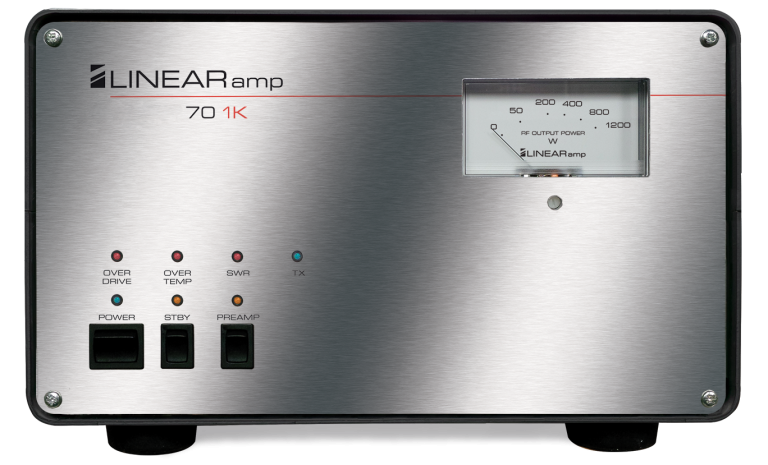

Fully protected against overdrive, high SWR, and over-temperature. Analogue RF power output meter on the front panel. Worldwide mains operation with fully automatic 100–260 V input selection.
Full Specification
| Power | |
| Max output power | 1000 W (430–440 MHz) |
|---|---|
| Saturated power | 1100 W |
| P1dB | 1050 W |
| Drive power | 15–20 W |
| Efficiency | > 65% at 1 kW output |
| Duty cycle | 30 min continuous at 600 W |
| Mains input | 100–260 V, 50/60 Hz — fully automatic |
| RF Performance | |
| Spurious outputs | < −60 dBc @ 900 W |
| Input return loss | > 15 dB |
| RX insertion loss | < 0.3 dB |
| RF device | ART1K6FH LDMOS × 1 |
| Connectors | N-Type, input and output |
| Preamplifier Supply | |
| Supply voltage | 12 V 1.5A |
| Sequencing delay | Manually adjustable |
| Feed method | Bias-T coax injection or rear panel |
| Physical | |
| Dimensions | 315 W × 360 D × 180 H mm |
| Weight | 14.5 kg |
| Origin | Made in the UK |
