Linear Amp UK 6-1.5K 1500W 50MHz Solid State Linear Amplifier
- 1500W CW Output 50-54MHz
- Solid State amplifier
- MRFX1K80H LDMOS
- 2.5-25W drive options
- Integral Power Supply 100-260V 50/60Hz input
- Massive cooling for Datamode / Contest use
- Sequenced preamp power and control
- 14.5Kg
Linear Amp UK · 50 MHz Solid State Linear Amplifier
Linear Amp UK 6-1.5K 50 MHz Solid State Linear Amplifier
1500 W Output · High Duty Cycle · Made in the UK
A 1500 W solid state linear amplifier for the 50–54 MHz amateur band. Designed from the outset for high duty cycle operation — suitable for all modes including SSB, CW, RTTY, FT8, JT65, MSK and more. Ideal for EME, meteor scatter, and contesting.
MRFX1K80H LDMOS
Built-in Preamp Sequencer & Bias-T
100–260 V 50/60Hz
>75% Efficiency
14.5 kg
Key Performance Figures
Features
High Duty Cycle Design
Built around a 7.5 kg aluminium heatsink cooled by three temperature-controlled fans with stepless PIC-based speed control. Tested at 1 kW continuous for 30+ minutes without reaching thermal cut-out — ideal for EME, meteor scatter, FSK, and contesting on 50 MHz.
Advanced Preamp Integration
Built-in sequencer and Bias-T feed for masthead preamplifiers. Supply voltage 12 V with manually adjustable sequencing delay. Correctly sequences an external preamplifier automatically on every QSO.
Quiet, Intelligent Cooling
Fans run only when needed, with stepless temperature-proportional speed control via an on-board PIC controller. Changeover relays are equally quiet — unobtrusive in any shack environment.
Protection & Monitoring

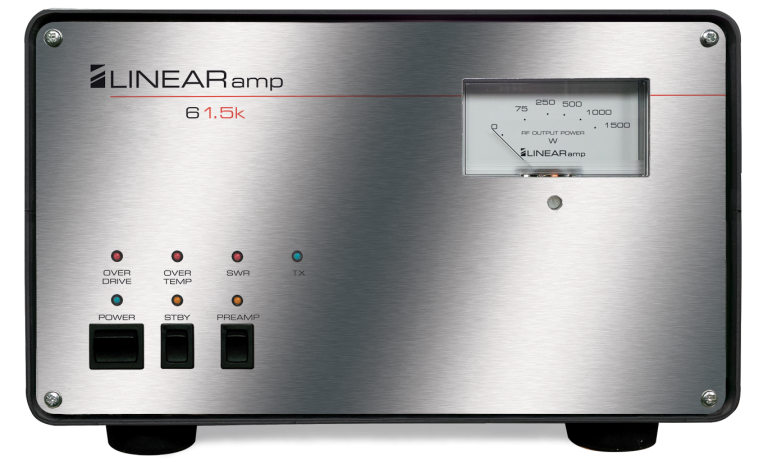

Fully protected against overdrive, high SWR, and over-temperature. Analogue RF power output meter on the front panel. Worldwide mains operation — note: slightly reduced output at 115 V.
Full Specification
| Power | |
| Max output power | 1500 W (50–54 MHz) |
|---|---|
| Saturated power | 1700 W |
| P1dB | 1550 W |
| Drive power | 2.5–20 W (specified at purchase) |
| Efficiency | > 75% at 1.5 kW output |
| Duty cycle | 30 min continuous tested at 1.2 kW |
| Mains input | 100–260 V, 50/60 Hz — fully automatic (note: slightly reduced output at 115 V) |
| RF Performance | |
| Spurious outputs | < −60 dBc @ 1200 W |
| Input return loss | > 15 dB |
| RX insertion loss | < 0.20 dB |
| RF device | MRFX1K80H LDMOS × 1 |
| Connectors | N-Type, input and output |
| Preamplifier Supply | |
| Supply voltage | 12V 1.5A |
| Sequencing delay | Manually adjustable |
| Feed method | Bias-T coax injection or rear panel |
| Physical | |
| Dimensions | 315 W × 360 D × 180 H mm |
| Weight | 14.5 kg |
| Origin | Made in the UK |
