Linear Amp UK 222-1.2K 1200W 222MHz Solid State Linear Amplifier
- 1200W output 222-226MHz
- Solid State Linear amplifier
- ART1K6FH LDMOS fitted
- Integral Power Supply 100-260V 50/60Hz input
- Massive cooling for EME / Datamode /Contest use
- Sequenced preamp power and control
- 14.5Kg
Linear Amp UK · 222 MHz Solid State Linear Amplifier
Linear Amp UK 222-1.2K 222 MHz Solid State Linear Amplifier
1200 W Output · High Duty Cycle · Made in the UK
A 1200 W solid state linear amplifier for the 222–226 MHz amateur band. Designed from the outset for high duty cycle operation — suitable for all modes including SSB, CW, RTTY, FT8, JT65, MSK and more. Ideal for EME, meteor scatter, and contesting.
ART1K6FH LDMOS
Built-in Preamp Sequencer & Bias-T
100–260 V 50/60Hz
>70% Efficiency
14.5 kg
Key Performance Figures
Features
High Duty Cycle Design
Built around a 7.5 kg aluminium heatsink cooled by three temperature-controlled fans with stepless PIC-based speed control. Tested at 1 kW continuous for 30+ minutes without reaching thermal cut-out — ideal for EME, meteor scatter, FSK, and contesting on 222 MHz.
Advanced Preamp Integration
Built-in sequencer and Bias-T feed for masthead preamplifiers. Supply voltage 12 V / 1.5 A with manually adjustable sequencing delay. Correctly sequences an external preamplifier automatically on every QSO.
Quiet, Intelligent Cooling
Fans run only when needed, with stepless temperature-proportional speed control via an on-board PIC controller. Changeover relays are equally quiet — unobtrusive in any shack environment.
Protection & Monitoring

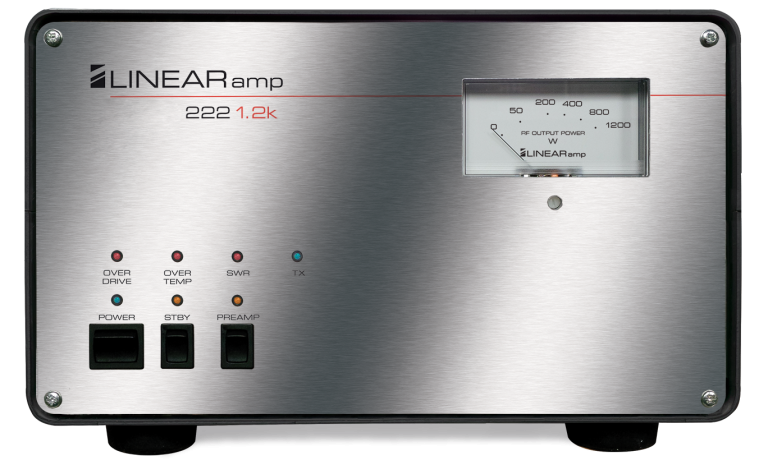

Fully protected against overdrive, high SWR, and over-temperature. Analogue RF power output meter on the front panel. Worldwide mains operation with fully automatic 100–260 V input selection.
Full Specification
| Power | |
| Max output power | 1200 W (222–226 MHz) |
|---|---|
| Saturated power | 1300 W |
| P1dB | > 1200W |
| Drive power | 10–25 W (specified at purchase) |
| Efficiency | > 70% at 1 kW output |
| Duty cycle | 30 min continuous tested at 1 kW |
| Mains input | 100–260 V, 50/60 Hz — fully automatic |
| RF Performance | |
| Spurious outputs | < −60 dBc @ 1000 W |
| Input return loss | > 15 dB |
| RX insertion loss | < 0.45 dB |
| RF device | ART1K6FH LDMOS × 1 |

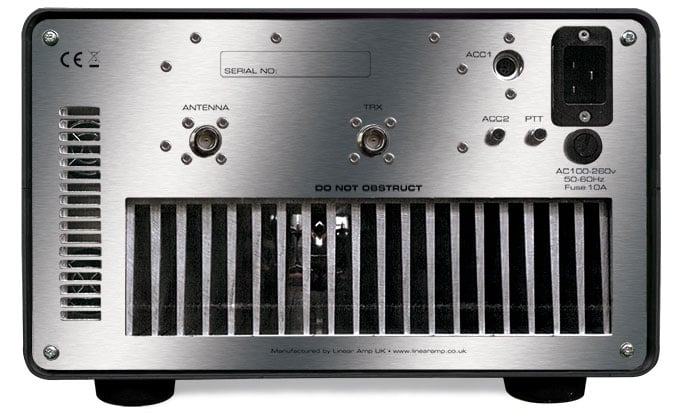

| Connectors | N-Type, input and output |
| Preamplifier Supply | |
| Supply voltage | 12 V 1.5 A |
| Sequencing delay | Manually adjustable |
| Feed method | Bias-T coax injection or rear panel |
| Physical | |
| Dimensions | 315 W × 360 D × 180 H mm |
| Weight | 14.5 kg |
| Origin | Made in the UK |
